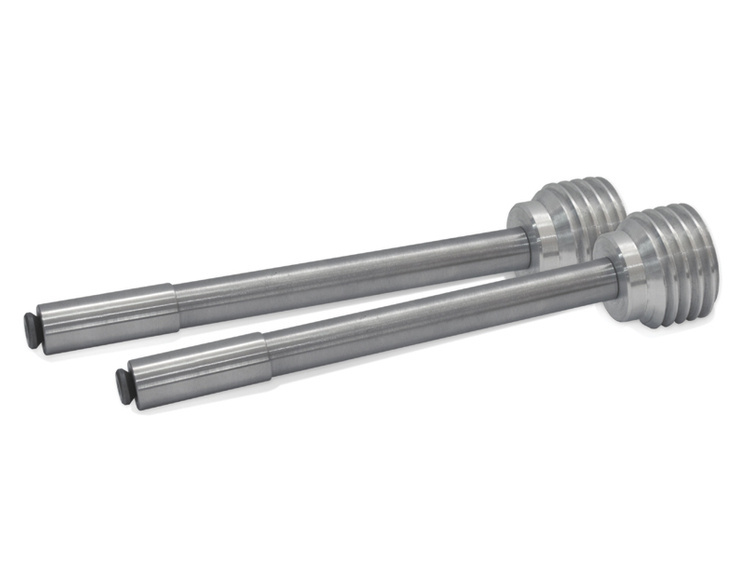

Internal pipe blasting nozzle type PTC-360°L

Internal pipe blasting nozzles type PTC-360°L are designed to blast clean the interior of pipes ranging in size from 3/4" to 2" I.D.

The nozzle connected an abrasive blast machine in place of a standard nozzle.

In operation, the PTC-360°L nozzle directs the air/abrasive mixture at a deflection tip.

This tip causes the blast pattern to fan out into a wide, circular pattern, which cleans the inside of the pipe as the nozzle is passed through.

The length of the working area is 200 mm.

Made from tungsten carbide (TC).

Highly wear-resistant blasting nozzles.

Lifetime: - Up to 400 h.

Jacket: Aluminum. Thread:

Aluminum, 50 mm for NHP nozzle holder.

PTC-360°L           Internal pipe blasting nozzle, tungsten carbide, 5.0 mm x 200 mm

On request: Exchangeable deflection tip for PTC- 360°L, tungsten carbide (TC)
