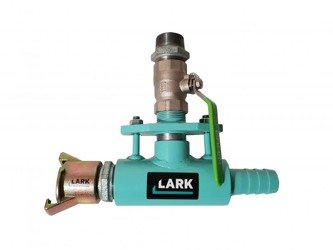

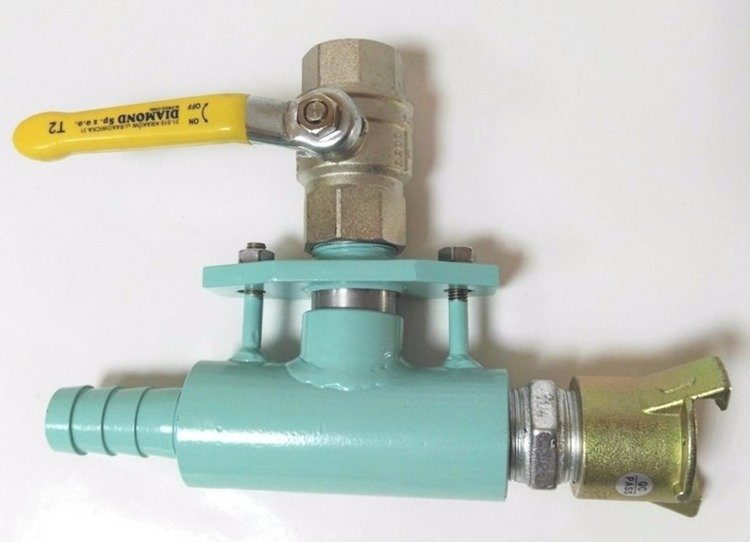

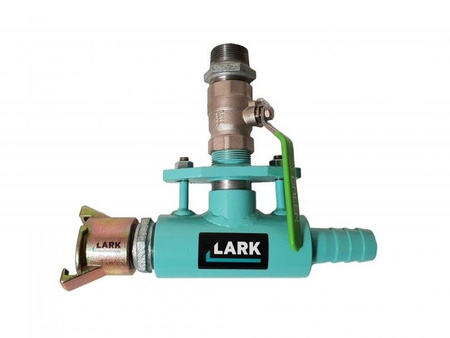

Injector valve

Injector valve for regulating the amount of the flowing abrasives.

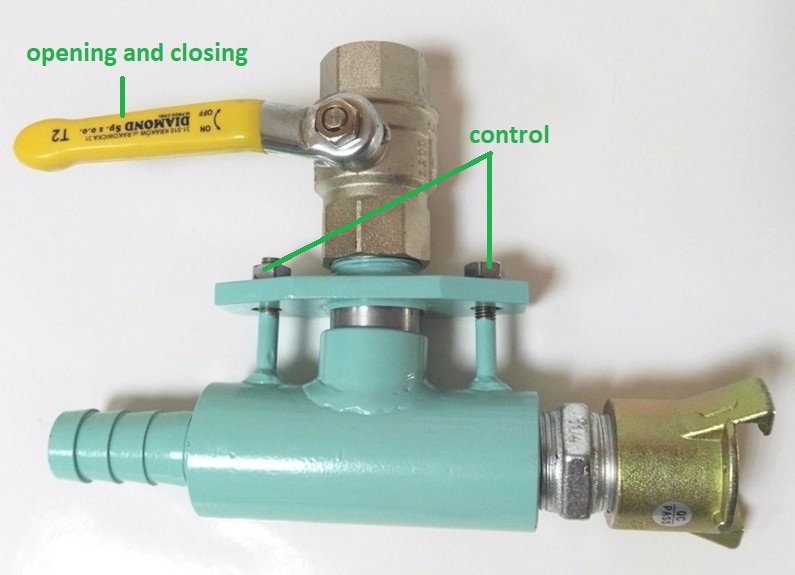

Opening and closing with ball valve, regulating the amount of the flowing abrasives with 2 screws (as on the picture below).

Attention: please do not use the ball valve to regulating the amount of the flowing abrasives, because it will wear out quickly, only proper use will guarantee long use (at least 1 year).

Technical data:

Nipple: 1 1/4"

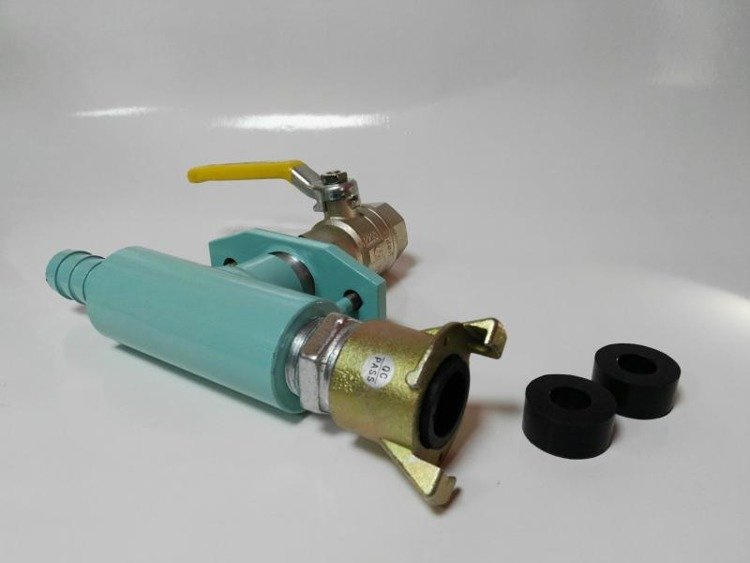

Metal hose coupling: STC-1 (CFT-1) 1 1/4" with gasket (Replacement gaskets are also available if required)

Quick disconnect coupling for hose 32mm Internal Diameter

Weight: 5 kg

Measures: 29,5 x 25 x 9 cm
